TOYOTA NEW HILUX

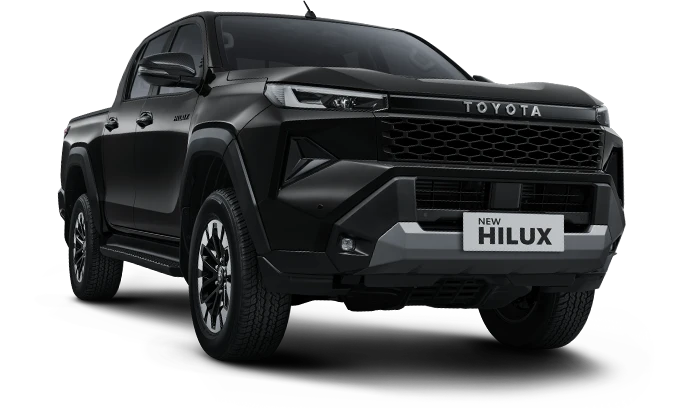

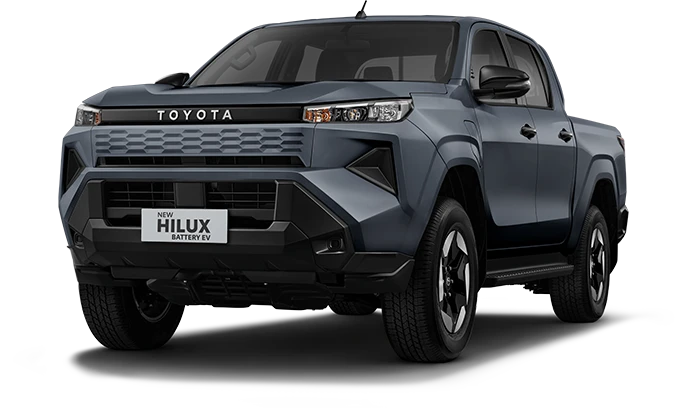

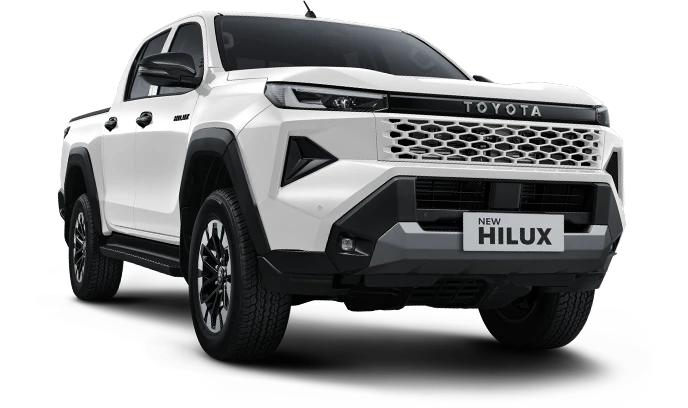

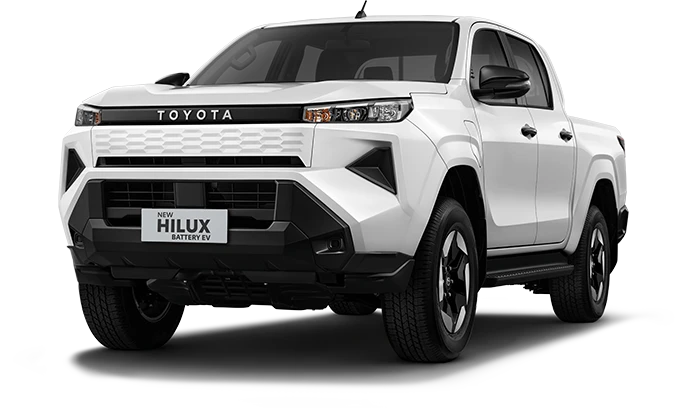

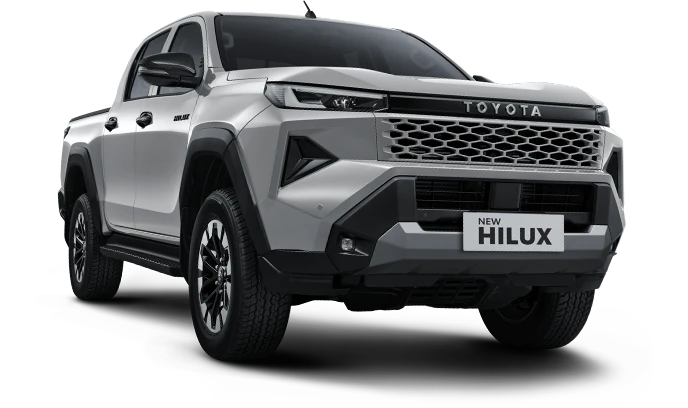

| VARIAN WARNA
Toyota New Hilux tersedia dalam 10 varian warna yang bisa anda pilih sesuai dengan keinginan anda. Untuk melihat warna lainnya silahkan slide pada gambar produk atau klik tanda panah pada gambar. Atau tekan tombol dibawah untuk mengajukan form Test Drive.
| PRICE LIST
Toyota New Hilux
| TYPE | ON THE ROAD |
| 2.8 (4x4) M/T SINGLE CBN | 416.800.000 |
| 2.8 E (4X4) M/T DOUBLE | 466.300.000 |
| 2.8 G (4X4) M/T DOUBLE | 497.900.000 |
| 2.8 V (4X4) A/T DOUBLE | 574.200.000 |
| 2.8 EV BATTERY DOUBLE | 1.019.000.000 |
| SPESIFIKASI
DIMENSI
|
Panjang Keseluruhan / Overall Length (mm) |
5.320 |
|
Lebar Keseluruhan / Overall Width (mm) |
1.855 |
|
Tinggi Keseluruhan / Overall Height (mm) |
1.795 |
|
Ukuran Panjang Dek / Deck Length Size (mm) |
2.350 |
|
Ukuran Lebar Dek / Deck Width Size (mm) |
1.575 |
|
Ukuran Tinggi Dek / Deck Height Size (mm) |
480 |
|
Jarak Poros Roda / Wheelbase (mm) |
3.085 |
|
Overhang Depan (mm) |
990 |
|
Overhang Belakang (mm) |
1.245 |
|
GVM (kg) |
2.900 |
|
Ground Clearance (mm) |
306 |
MESIN
|
Tipe Mesin / Engine Type |
1GD-FTV 4 Cylinders In-Line DOHC 16 Valve |
|
Diameter x Langkah / Bore x Stroke (mm x mm) |
92.00 x 103.60 |
|
Isi Silinder / Displacement (cc) |
2.755 |
|
Daya Maksimum / Maximum Power (kW) |
150 |
|
Torsi Maksimum / Maximum Torque (Nm) |
420 |
|
Sistem Bahan Bakar / Fuel System |
Fuel Injection |
|
Jenis Bahan Bakar / Fuel Type |
Diesel |
|
Kapasitas Tangki Bahan Bakar / Fuel Tank Capacity (ltr) |
80L |
|
BEV Driving Range (km) |
– |
|
Battery Capacity (kWh) |
– |
|
Main Drive Battery (V) |
– |
CHASSIS
|
Sistem Penggerak Roda / Drive System |
4WD (Part Time) with Rear Differential Lock |
|
Transmisi / Transmission |
6 M/T |
|
Perbandingan Gigi / Gear Ratio (1st) |
4.784 |
|
Perbandingan Gigi / Gear Ratio (2nd) |
2.423 |
|
Perbandingan Gigi / Gear Ratio (3rd) |
1.443 |
|
Perbandingan Gigi / Gear Ratio (4th) |
1.000 |
|
Perbandingan Gigi / Gear Ratio (5th) |
0.826 |
|
Perbandingan Gigi / Gear Ratio (6th) |
0.643 |
|
Perbandingan Gigi Mundur / Gear Ratio Reverse |
4.066 |
|
Perbandingan Gigi / Final Gear Ratio |
3.583 |
|
Suspensi Depan / Front Suspension |
Double Wishbone |
|
Suspensi Belakang / Rear Suspension |
Rigid Leaf Axle |
|
Sistem Kemudi / Steering Gear |
Rack & Pinion |
|
Steering System |
HPS |
|
Sistem Rem Depan / Front Brake System |
16″ Disc |
|
Sistem Rem Belakang / Rear Brake System |
295LT Drum |
|
Sistem Rem Parkir / Parking Brake System |
Lever |
|
Velg & Roda / Tire & Wheels |
225/70/R17C Steel |
|
Ban Cadangan / Spare Tire |
Steel |
DIMENSI
| Panjang Keseluruhan / Overall Length (mm) | 5.320 |
| Lebar Keseluruhan / Overall Width (mm) | 1.855 |
| Tinggi Keseluruhan / Overall Height (mm) | 1.815 |
| Ukuran Panjang Dek / Deck Length Size (mm) | 1.555 |
| Ukuran Lebar Dek / Deck Width Size (mm) | 1.540 |
| Ukuran Tinggi Dek / Deck Height Size (mm) | 480 |
| Jarak Poros Roda / Wheelbase (mm) | 3.085 |
| Overhang Depan (mm) | 990 |
| Overhang Belakang (mm) | 1.245 |
| GVM (kg) | 2.950 |
| Ground Clearance (mm) | 312 |
MESIN
| Tipe Mesin / Engine Type | 1GD-FTV 4 Cylinders In-Line DOHC 16 Valve |
| Diameter x Langkah / Bore x Stroke (mm x mm) | 92.00 x 103.60 |
| Isi Silinder / Displacement (cc) | 2.755 |
| Daya Maksimum / Maximum Power (kW) | 150 |
| Torsi Maksimum / Maximum Torque (Nm) | 500 |
| Sistem Bahan Bakar / Fuel System | Fuel Injection |
| Jenis Bahan Bakar / Fuel Type | Diesel |
| Kapasitas Tangki Bahan Bakar / Fuel Tank Capacity (ltr) | 80L |
| BEV Driving Range (km) | – |
| Battery Capacity (kWh) | – |
| Main Drive Battery (V) | – |
CHASSIS
| Sistem Penggerak Roda / Drive System | 4WD (Part Time) with Rear Differential Lock |
| Transmisi / Transmission | 6 A/T w/ Sport Sequential Shiftmatic |
| Perbandingan Gigi / Gear Ratio (1st) | 3.600 |
| Perbandingan Gigi / Gear Ratio (2nd) | 2.090 |
| Perbandingan Gigi / Gear Ratio (3rd) | 1.488 |
| Perbandingan Gigi / Gear Ratio (4th) | 1.000 |
| Perbandingan Gigi / Gear Ratio (5th) | 0.688 |
| Perbandingan Gigi / Gear Ratio (6th) | 0.581 |
| Perbandingan Gigi Mundur / Gear Ratio Reverse | 3.732 |
| Perbandingan Gigi / Final Gear Ratio | 3.909 |
| Suspensi Depan / Front Suspension | Double Wishbone |
| Suspensi Belakang / Rear Suspension | Soft Leaf Axle |
| Sistem Kemudi / Steering Gear | Rack & Pinion |
| Steering System | EPS |
| Sistem Rem Depan / Front Brake System | 17″ Disc |
| Sistem Rem Belakang / Rear Brake System | 17″ Disc |
| Sistem Rem Parkir / Parking Brake System | EPB |
| Velg & Roda / Tire & Wheels | 265/60/R18 Alumunium |
| Ban Cadangan / Spare Tire | Steel |
DIMENSI
|
Panjang Keseluruhan / Overall Length (mm) |
5.320 |
|
Lebar Keseluruhan / Overall Width (mm) |
1.855 |
|
Tinggi Keseluruhan / Overall Height (mm) |
1.800 |
|
Ukuran Panjang Dek / Deck Length Size (mm) |
1.555 |
|
Ukuran Lebar Dek / Deck Width Size (mm) |
1.540 |
|
Ukuran Tinggi Dek / Deck Height Size (mm) |
480 |
|
Jarak Poros Roda / Wheelbase (mm) |
3.085 |
|
Overhang Depan (mm) |
990 |
|
Overhang Belakang (mm) |
1.245 |
|
GVM (kg) |
3.145 |
|
Ground Clearance (mm) |
210 |
MESIN
|
Tipe Mesin / Engine Type |
2XM-Permanent Magnet Synchronous Motor |
|
Diameter x Langkah / Bore x Stroke (mm x mm) |
– |
|
Isi Silinder / Displacement (cc) |
– |
|
Daya Maksimum / Maximum Power (kW) |
144 |
|
Torsi Maksimum / Maximum Torque (Nm) |
205.5 (Front) 268.6 (Rear) |
|
Sistem Bahan Bakar / Fuel System |
– |
|
Jenis Bahan Bakar / Fuel Type |
– |
|
Kapasitas Tangki Bahan Bakar / Fuel Tank Capacity (ltr) |
– |
|
BEV Driving Range (km) |
Up to 315 |
|
Battery Capacity (kWh) |
59.2 |
|
Main Drive Battery (V) |
296.0 |
CHASSIS
|
Sistem Penggerak Roda / Drive System |
AWD |
|
Transmisi / Transmission |
Single Speed |
|
Perbandingan Gigi / Gear Ratio (1st) |
– |
|
Perbandingan Gigi / Gear Ratio (2nd) |
– |
|
Perbandingan Gigi / Gear Ratio (3rd) |
– |
|
Perbandingan Gigi / Gear Ratio (4th) |
– |
|
Perbandingan Gigi / Gear Ratio (5th) |
– |
|
Perbandingan Gigi / Gear Ratio (6th) |
– |
|
Perbandingan Gigi Mundur / Gear Ratio Reverse |
– |
|
Perbandingan Gigi / Final Gear Ratio |
– |
|
Suspensi Depan / Front Suspension |
Double Wishbone |
|
Suspensi Belakang / Rear Suspension |
De-Dion |
|
Sistem Kemudi / Steering Gear |
Rack & Pinion |
|
Steering System |
EPS |
|
Sistem Rem Depan / Front Brake System |
17″ Disc |
|
Sistem Rem Belakang / Rear Brake System |
17″ Disc |
|
Sistem Rem Parkir / Parking Brake System |
EPB |
|
Velg & Roda / Tire & Wheels |
265/65/R17 Alumunium |
|
Ban Cadangan / Spare Tire |
265/65/R17 Alumunium |
*Keterangan : Spesifikasi yang ditampilkan merupakan unit dengan tipe tertinggi.
Untuk mengetahui informasi tipe unit lainnya, Anda dapat menghubungi kontak yang tersedia pada website ini
